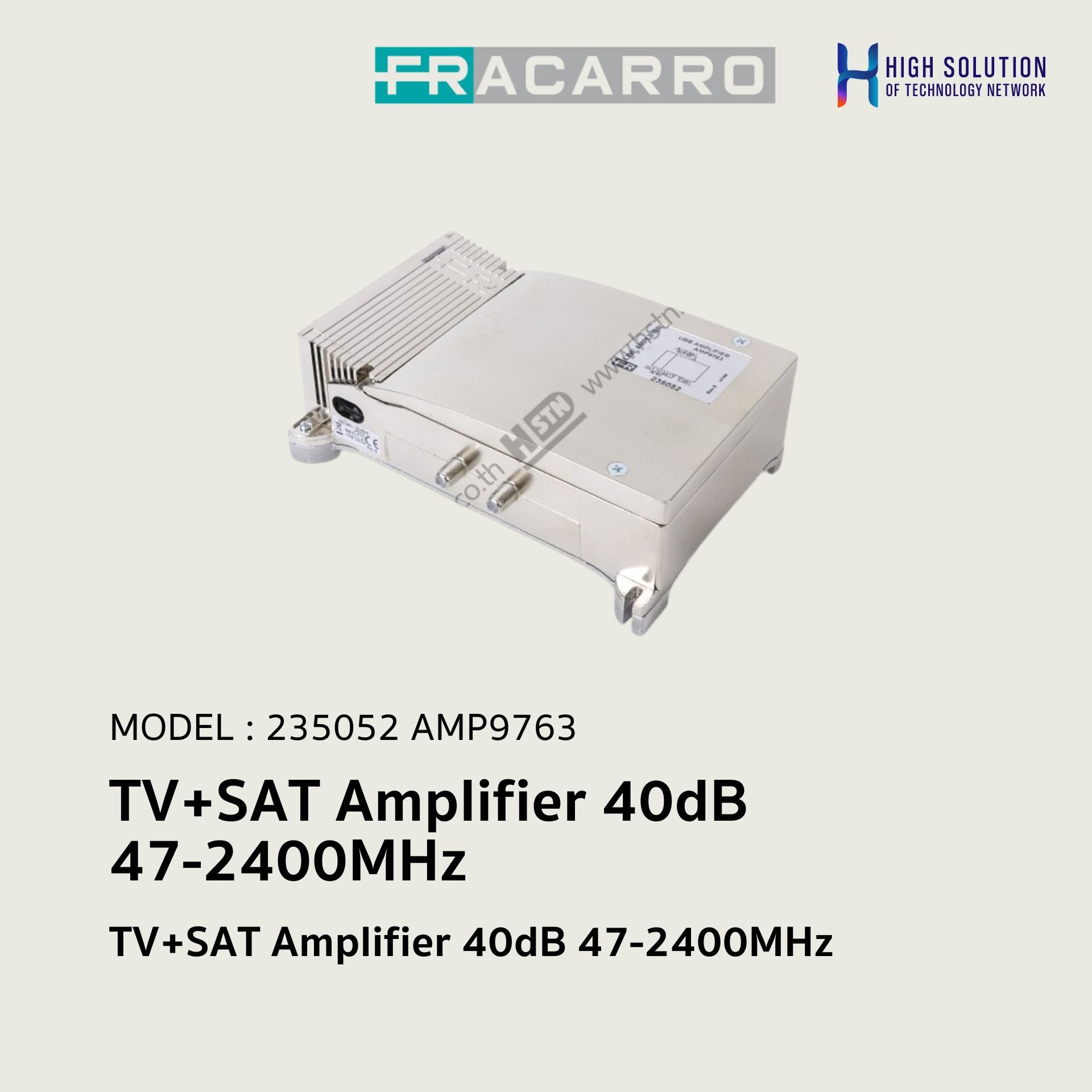

TV+SAT Amplifier 40dB 47-2150MHz
Attribute:
SKU : AA0272AAA0001 / MODEL : 235052 AMP9763
Categories : Fracarro , SMATV Booster Amplifier ,
Share
Fracarro 235052 AMP9763 UBB TV + SAT Amplifiers 40dB 47-862MHz and 950-2400MHz is UBB (Ultra Broadband) Line Amplifier with return path. To be used as the final amplifier before wall outlets. Normally used to amplify signals after an optical link. All adjustments are internally located under the die cast cover secured with safety screws to prevent unauthorised access.
Main Features:
- Forward Frequency Range: 47-862MHz and 950-2400MHz
- Forward Gain 47-862MHz: 40dB
- Forward Gain 950-2400MHz: 40dB
- Reverse Frequency Range: 5-30MHz
- Reverse Gain: 25dB
- Test Point: -30dB
- Operating Temperature: -10 to +55°C.
- Passive or Active Return Path, Switchable by The Installer
Specification:
Installation Example:
