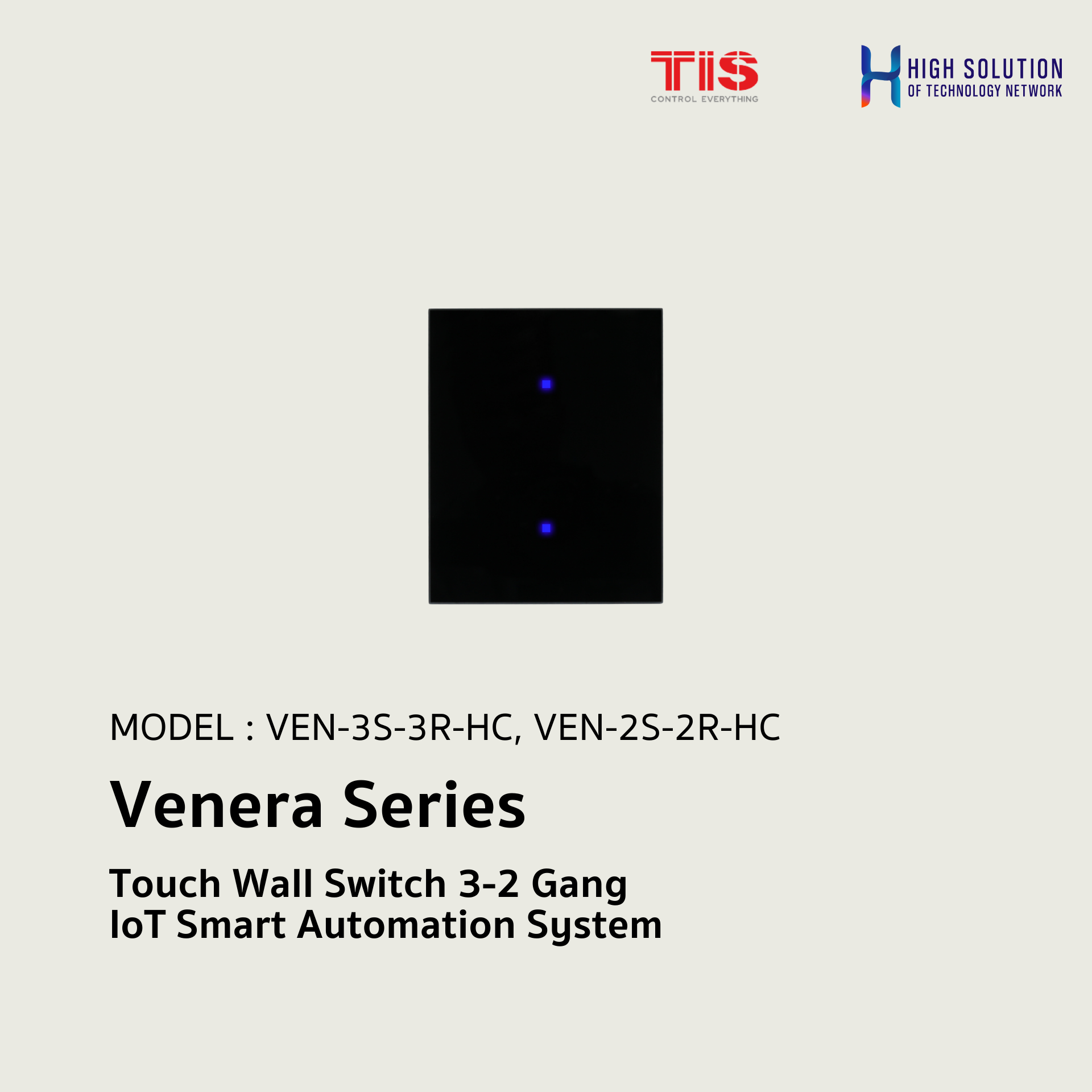

VEN-3S-3R-HC, VEN-2S-2R-HC, TIS, Venera Series Touch Wall Switch 3-2 Gang - IoT Smart Automation System
คุณสมบัติสินค้า:
SKU : VEN-3S-3R-HC, VEN-2S-2R-HC
หมวดหมู่ : IOT Smart Automation System ,
แบรนด์ : TIS
Share
PRODUCT SPECIFICATIONS :
Outputs Voltage : | Input voltage | 110-230 VAC 50/60 Hz 3W / 12V Internal protection fuse 10-30 mA / 12 V DC |
| Output : | Number of channels | 2 / 3 (refer to model number) 110 / 230 V AC 50/60 Hz 8 A / 230 VAC |
| Output switching current : | Max switching current Output service life | 10A/230 VAC resistive 6A/230 VAC florescent 8A/230 VAC 277VAC / 30VDC |
| Output service life : | Mechanical endurance | > 10,000,000 OPS |
| Output switching times : | Operating time Releasing time Max. operating frequency | 8mS (at nomi. Volt) 5 mS (at nomi. Volt) 25 cycle/min |
| TIS AIR | WIFI signal Protocol standard | 2.4 GHz 802.11 b/g/n |
| Operation : | touch buttons Infrared receiver Backlight TIS AIR Upgrading | 4 touch Capacitive buttons for control … Control it by TIS remote control RGB backlight indicators TIS protocol messages and commands By WIFI Connection |
| Dimensions : | Length × Width × Height | 85mm × 42mm × 109mm |
| Housing : | Materials Internal parts color IP rating | Fireproof PC/ Glass in front Black or White IP 50 |
