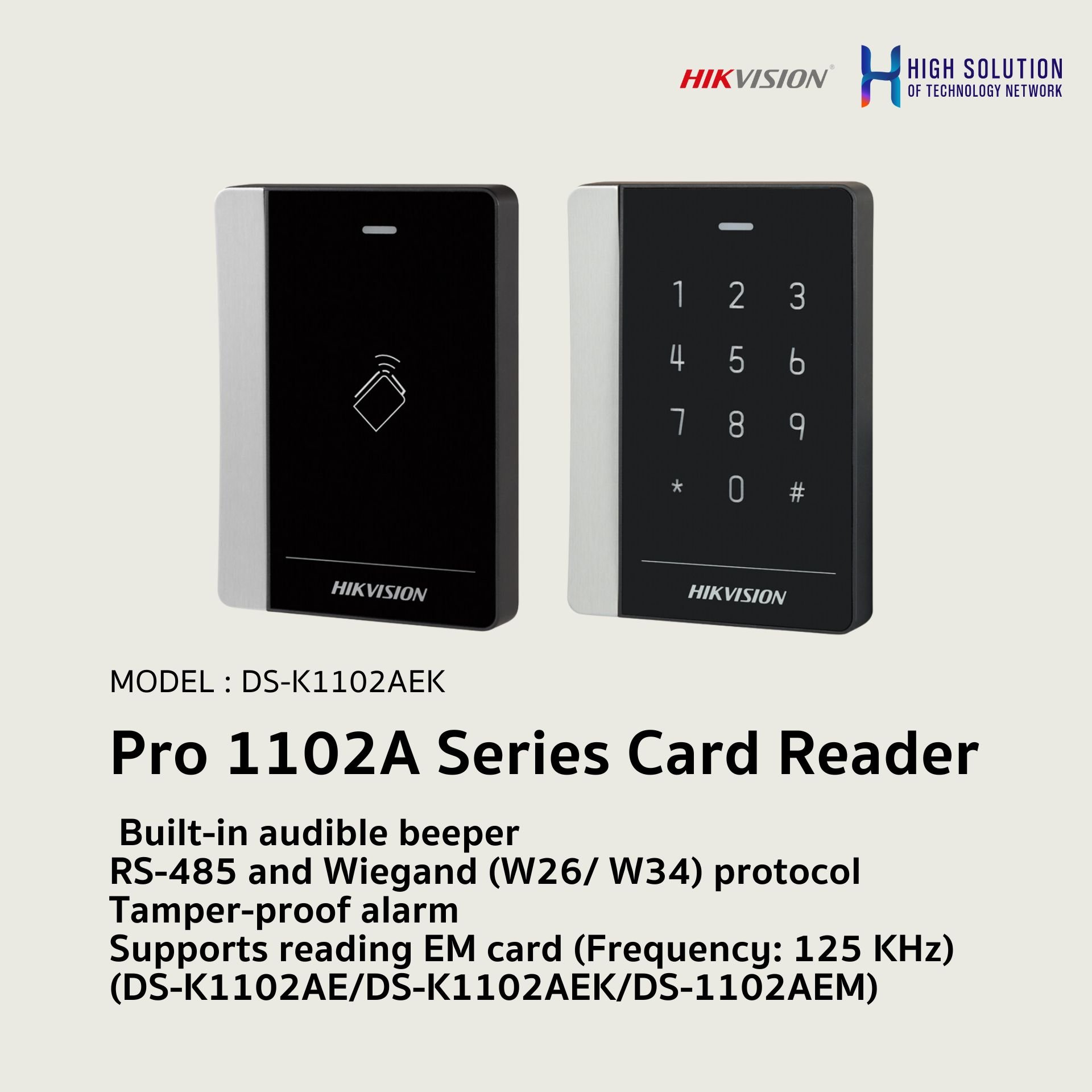

DS-K1102AEK HIKVISION Pro 1102A Series Card Reader
Attribute:
SKU : DS-K1102AEK
Categories : Access Control System ,
Brand : Hikvision
Share
Pro 1102A Series Card Reader
- Built-in audible beeper
- RS-485 and Wiegand (W26/ W34) protocol
- Tamper-proof alarm
- Supports reading EM card (Frequency: 125 KHz) (DS-K1102AE/DS-K1102AEK/DS-1102AEM)
- Supports reading M1 card (Frequency: 13.56 MHz). (DS-K1102AM/DS-K1102AMK/DS-K1102AEMK)
| Authentication | |
| Card reading frequency | DS-K1102AE/DS-K1102AEK/DS-K1102AEM/DS-K1102AEMK: 125 KHz DS-K1102AM/DS-K1102AMK/DS-K1102AEM/DS-K1102AEMK: 13.56 MHz |
| General | |
| Power supply | 12 VDC, 500 mA |
| Power consumption | ≤ 2 W |
| Working temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Dimensions | 121 mm × 86.5 mm × 14 mm (4.76" × 3.41" × 0.55") |
| Installation | Applied for 86 & 120 gang box |
| Weight | ≤ 0.14 kg (0.3 lb) |
| Keypad | DS-K1102AE/DS-K1102AM/DS-K1102AEM: No Keypad DS-K1102AEK/DS-K1102AMK/DS-K1102AEMK: Keypad with 12 keys (0 to 9, *, #) |
| Buzzer | Beeper |
| Function | |
| ID settings | via DIP switch |
| DATA SHEET |  |
