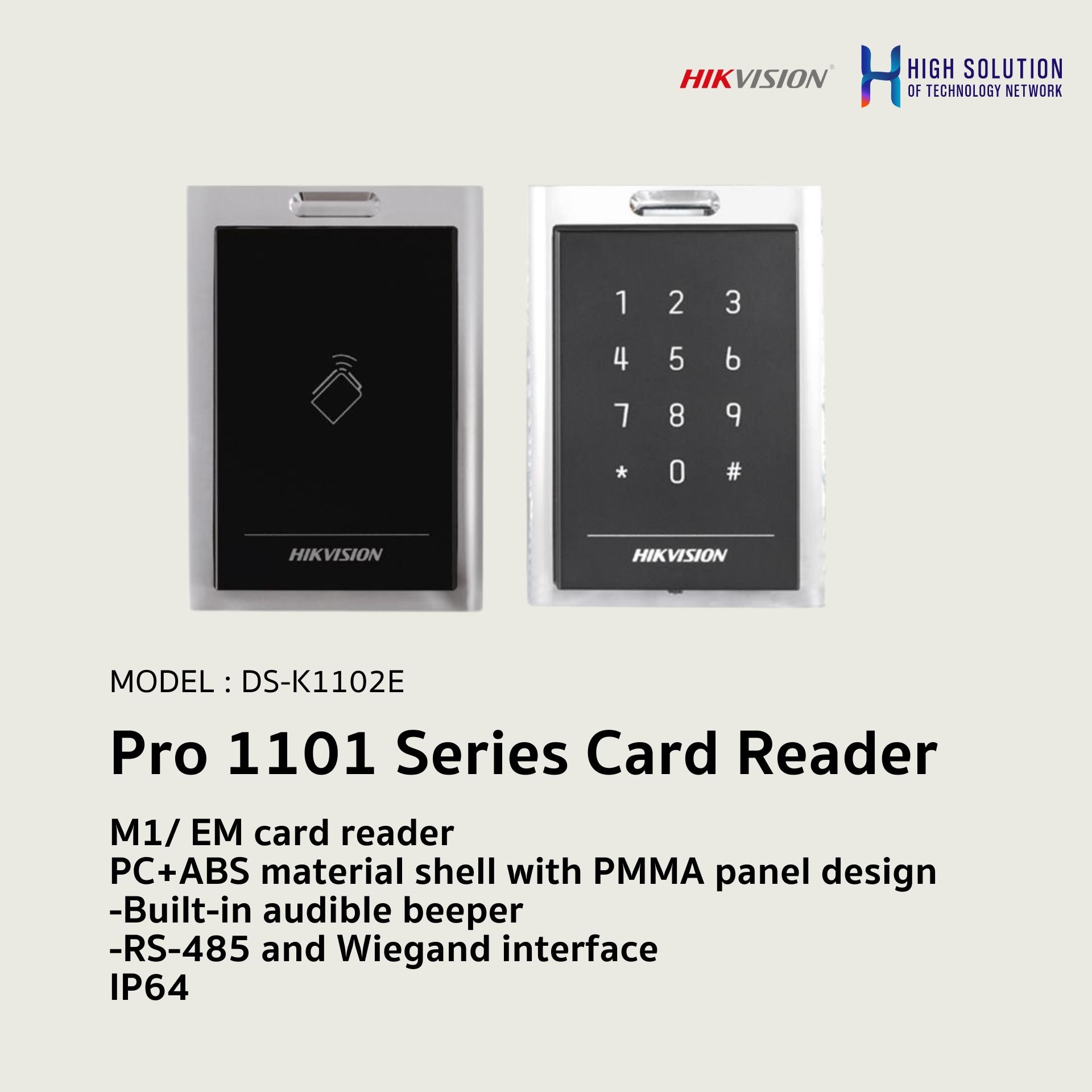

DS-K1102E HIKVISION Pro 1102 Series Card Reader
Attribute:
SKU : DS-K1102E
Categories : Access Control System ,
Brand : Hikvision
Share
Pro 1102 Series Card Reader
- Mifare1/ EM card reader
- PC+ABS material shell with PMMA panel design
- Built-in audible beeper
- RS-485 and Wiegand interface
- IP64
| General | |
| Power Supply | 12V DC |
| Working Temperature | -20°C to +65°C (-4°F to +149°F) |
| Working Humidity | 10% to 90% (Non Condensing) |
| Working Current | ≤500mA |
| Reading Frequency | 125KHz |
| Reading Range | ≤50mm (≤1.97") |
| ID Settings | via DIP Switch |
| Audio Alert | Beeper |
| Power Consumption | ≤2W |
| Keypad | No Keypad (DS-K1102E/M)Keypad with 12 Keys (0 to 9, *, #) (DS-K1102EK/MK) |
| Certifications | FCC, CE |
| LED Indicator | Power Indicator; Status LED Indicator |
| Protection Level | IP 64 |
| Dimensions | 121mm × 86.5mm × 14mm (4.76” × 3.41” × 0.55") |
| Weight | ≤0.14Kg |
| Installing Method | Applied for 86 & 120 Gang Box |
| system parameters | |
| Processor | 32-bit |
| DATA SHEET |  |
