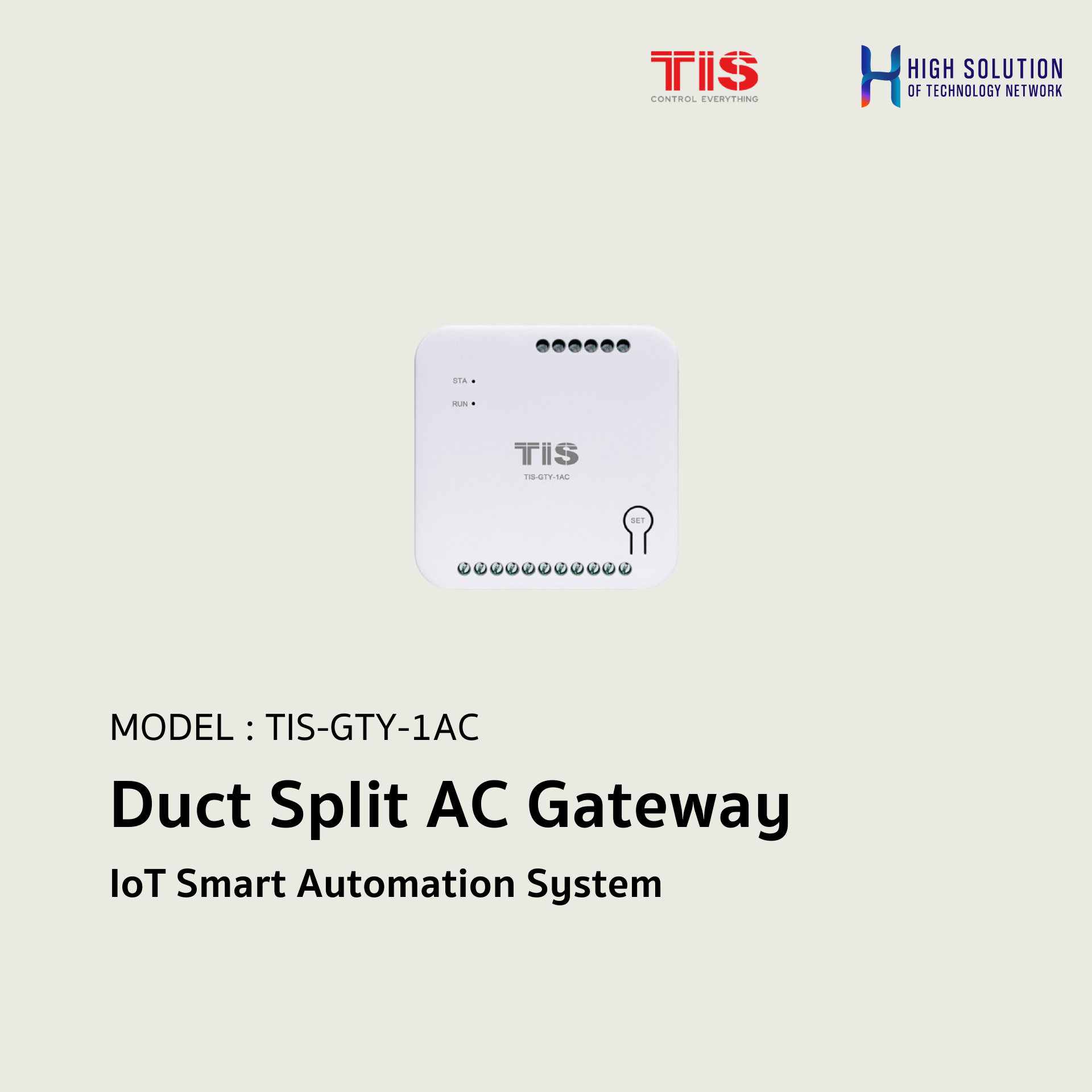

TIS-GTY-1AC, TIS, Duct Split AC Gateway - IoT Smart Automation System
Attribute:
SKU : TIS-GTY-1AC
Categories : IOT Smart Automation System ,
Brand : TIS
Share
PRODUCT SPECIFICATIONS :
Outputs Voltage : | External outputs | DC7~15V0.7W(MAX) 0.5W |
| TIS Bus : | Number of devices on 1 line | Max. 64 12-32 V DC <20 mA / 24 V DC <100 mA / 24 V DC Reverse polarity protection |
| Reaction time : | Approx. 20ms | |
| Function : | Cool, Heat, FAN Cool Fan speed control | Heat, FAN Control Low, Medium, High linked outputs |
| Mounting : | Wall mount Table top | Screw holder on the back of the module Free locate |
| Connection terminal | Screw terminal 0,1…2mm | |
| Weight : | Without packaging | 0.15 KG |
| Dimensions : | Width × Length × Height | 85mm x 85mm x 28mm |
| Housing : | Materials IP rating | ABS White IP 20 |
| Temperature range: | Operation Storage Transport | -30…65°C -20…65°C -30…75°C |
| Air humidity : | <90% non-condensing |
