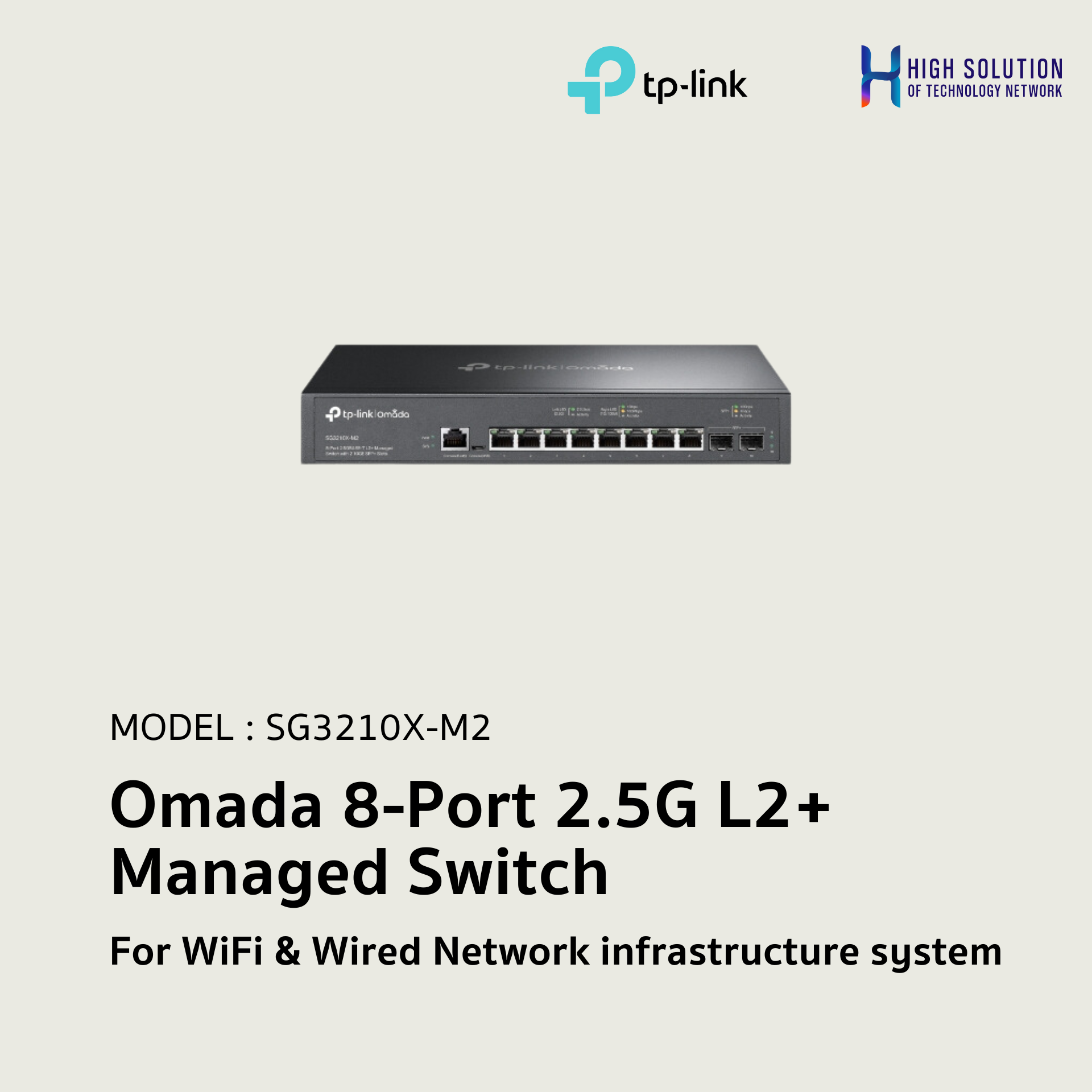

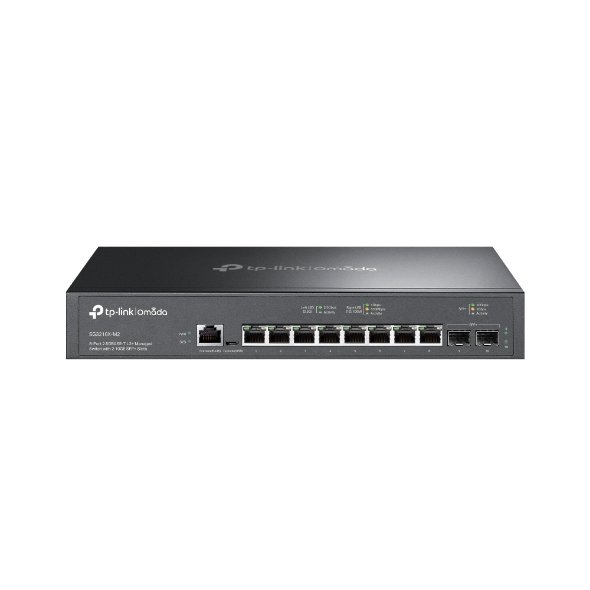

Omada 8-Port 2.5GBASE-T L2+ Managed Switch with 2 10GE SFP+ Slots
PORT: 8× 2.5G Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port
SPEC: 1U 13-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
- 2.5 Gbps Speeds: 8× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices.
- 10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Interface
• 8× 2.5 Gbps RJ45 Ports
• 2× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity : Fanless Design
Power Supply : 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) : 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Mounting : Rack Mountable / Desktop
Max Power Consumption : 15.0 W (110V/60Hz)
Max Heat Dissipation : 51.18 BTU/h (110 V/60 Hz)
PERFORMANCE
Switching Capacity
80 Gbps
Packet Forwarding Rate
59.52 Mpps
MAC Address Table
16 K
Packet Buffer Memory
12 Mbit
Jumbo Frame
9 KB
