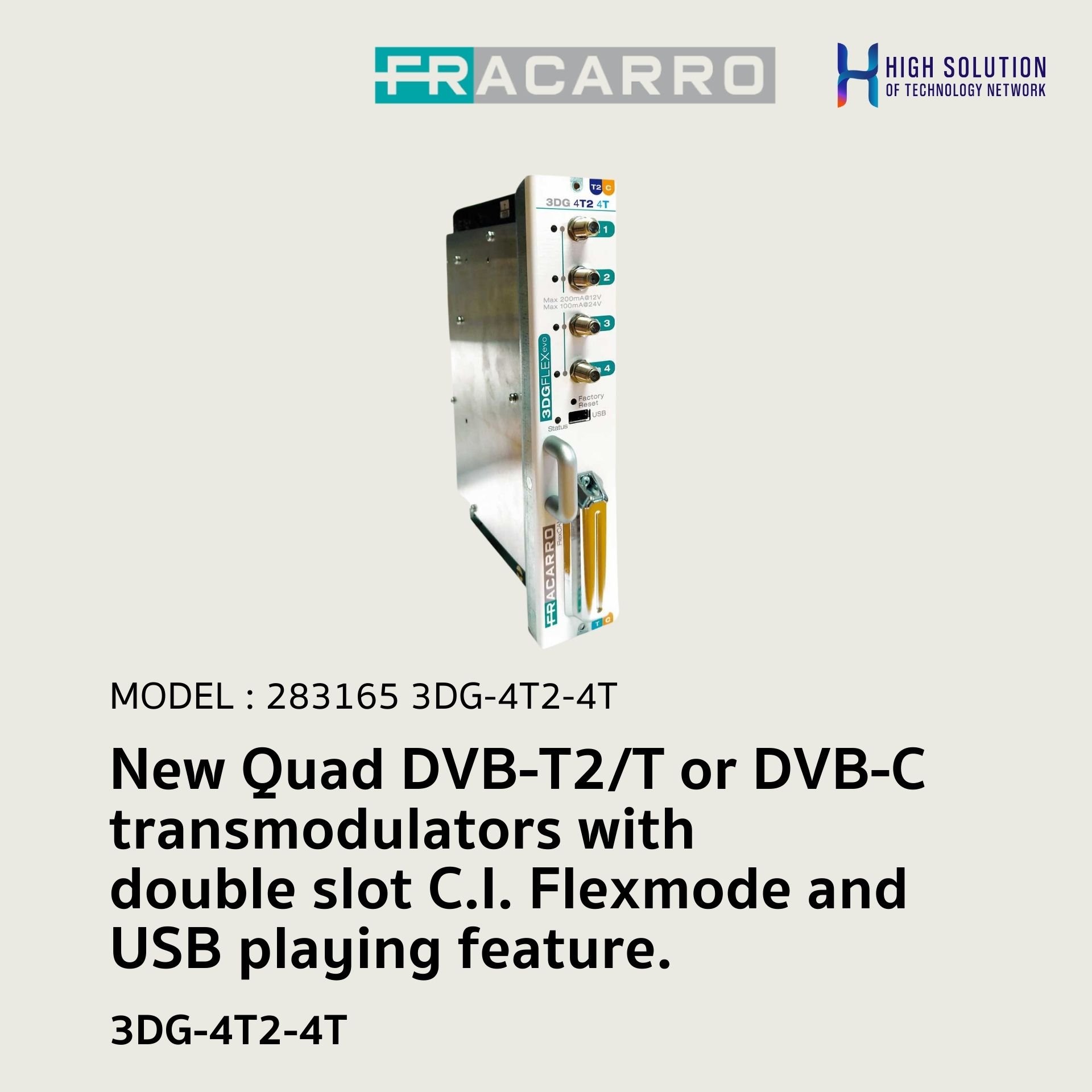

New Quad DVB-T2/T or DVB-C transmodulators with double slot C.I. Flexmode and USB playing feature.

283165 3DG-4T2-4T

Share

หมวดหมู่ : Headend Analog & Digital

Share

The new 3DGFlex Evo professional headend will introduce many innovative features.
Extreme flexibility!! One of the most innovative features of the new generation modules is the "Smart & Pool” function: all the new modules inserted on the same 3DGBOX exchange between them bidirectionally the contents through the very high speed Back Panel interface (up to 1Gbit/s bidirectional).

In this way each new 3DG “Evo” module is able to manage the signals coming from all the other new modules, with the advantage of being able to create flexible configurations, optimizing the number of elements of the system, especially in case of complex installations.

Also the "backward compatibility" concept is very advantageous: the new EVO modules can be managed on the same 3DG-BOX together with the “twin” existing modules (for ex. 3DG-2T2-2T), thus ensuring maximum comfort during the network design. In this way the installer could deploy many digital contents through every MATV coaxial network.

 3DG-4T2-4T is possible to tune up to 4 indipendent HD or SD terrestrial multiplexes (or DVB-C cable digital multiplexes) coming from the four inputs and even take the contents available on the Back Panel (i.e.“Smart&Pool feature”), decrypt the contents through the Professional CAMs and remodulate the programs on the four “customized” output digital multiplexes.

NEW FEATURES: thanks to the new FlexCAM operation mode feature, it’s possible to decrypt many programs coming from the different DTT inputs, by using the same CAM module (i.e. Flexible CAM on the OUTPUT). 3DG-4T2- 4T quad trasmodulator
