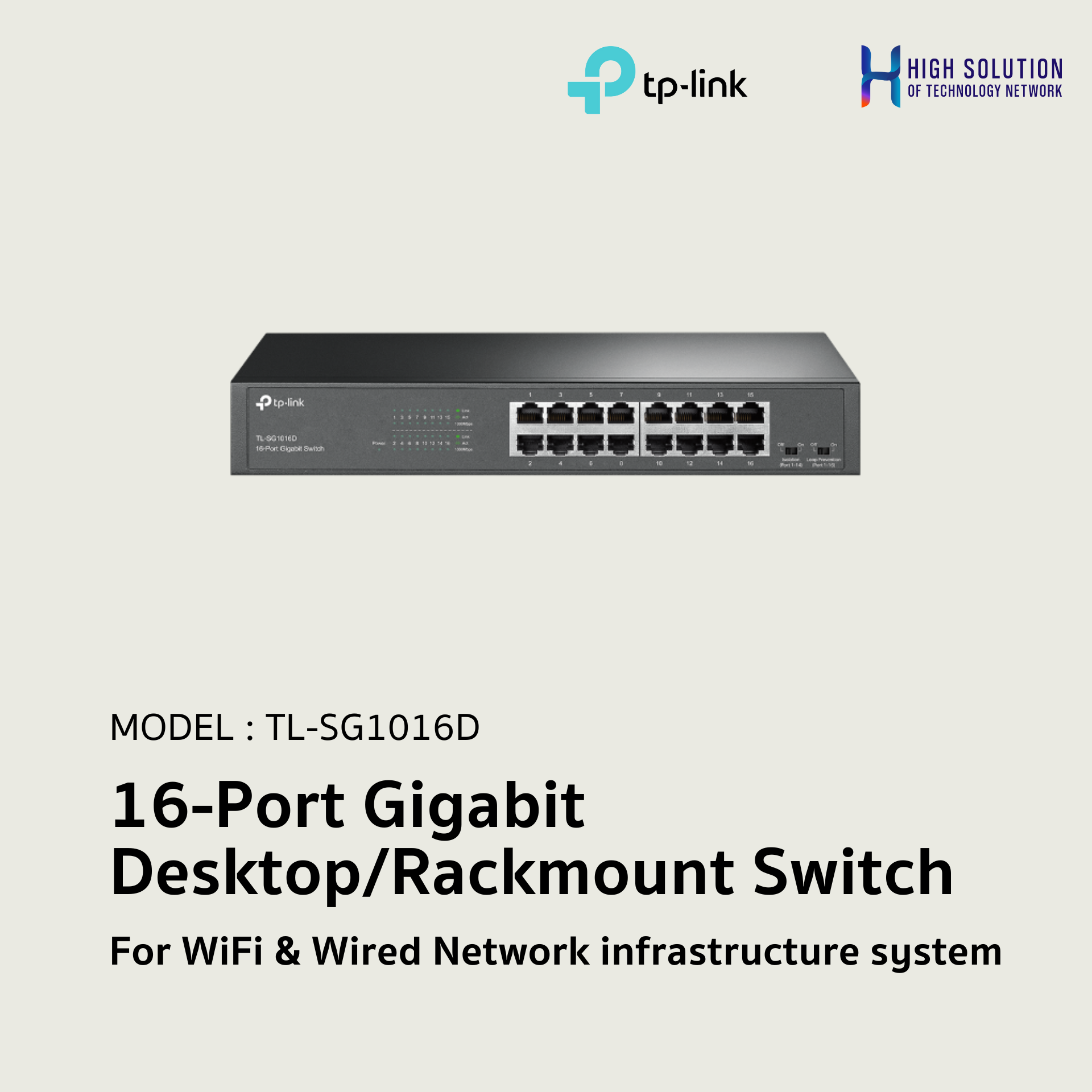

TL-SG1016D (TP-Link) 16-Port Gigabit Desktop/Rackmount Switch wifi & wired system

16-Port Gigabit Switch
PORT: 16× Gigabit RJ45 Ports
SPEC: 1U 13-inch Rack-mountable Steel Case
FEATURE: Plug and Play

• 16 10/100/1000Mbps ports

• Innovative energy-efficient technology saves power consumption

• Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation

• Isolation Mode: Ports 1-14

• Loop Prevention: Ports 1-16

• Plug & play design

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface
16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity : Fanless
Physical Security Lock : No
Power Supply : 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) : 11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm)
Max Power Consumption : 10.68 W (220 V/50 Hz)
Max Heat Dissipation : 36.31 BTU/h

PERFORMANCE
Switching Capacity : 32Gbps
Packet Forwarding Rate : 23.8Mpps
MAC Address Table : 8K
Advanced Functions
Isolation Mode: Ports 1-14
Loop Prevention: Ports 1-16
Jumbo Frame : 10KB
Green Technology : Yes
Transfer Method
Store-and-Forward
