SX3016F (TP-Link) JetStream 16-Port 10GE SFP+ L2+ Managed Switch wifi & wired System
Attribute:
SKU : SX3016F
Brand : TP-LINK
Share

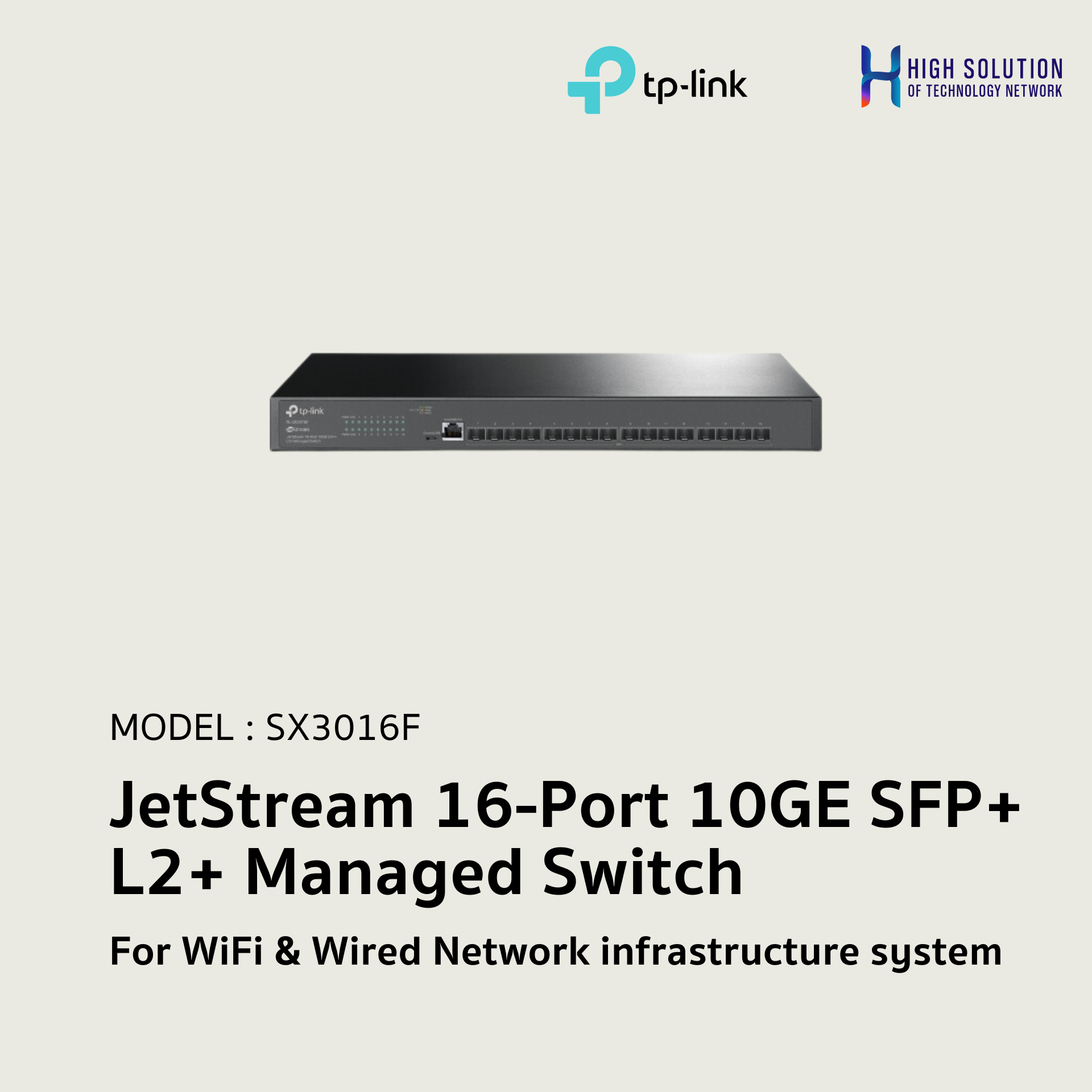

JetStream™ 16-Port 10GE SFP+ L2+ Managed Switch
PORT: 16× 10G SFP+ Slots, RJ45/Micro-USB Console Port
SPEC: 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies
- 16× Full 10GE SFP+ Slots: Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 320 Gbps switching capacity.
- Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more.
- Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.
- Dual Redundant Power Supplies: Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Interface
• 16× 10GE SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity
1
Power Supply
100-240 V AC~50/60 Hz
Dimensions ( W x D x H )
17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting
Rack Mountable
Max Power Consumption
32.74 W (220 V / 50 Hz)
Max Heat Dissipation
111.71 BTU/hr (220 V / 50 Hz)
PERFORMANCE
Switching Capacity
320 Gbps
Packet Forwarding Rate
238.08 Mpps
MAC Address Table
32 K
Packet Buffer Memory
24 Mbit
Jumbo Frame
9 KB
