4947 Televes Surge Arrester 90V 3GHz

Attribute:

SKU : Ref. 4947

Share

Share

Accessory for BOSS antennas

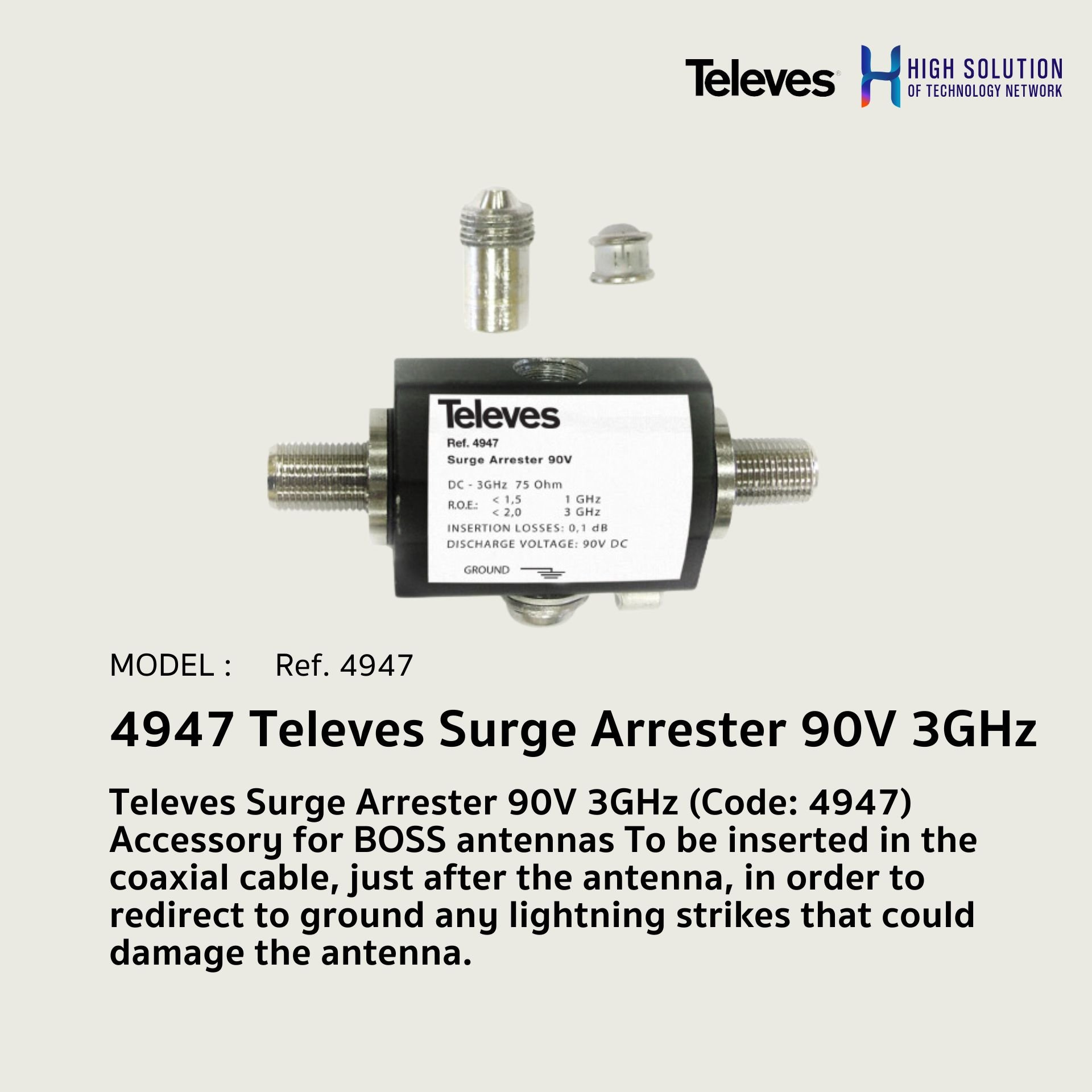

Televes Surge Arrester 90V 3GHz (Code: 4947) Accessory for BOSS antennas To be inserted in the coaxial cable, just after the antenna, in order to redirect to ground any lightning strikes that could damage the antenna. Recommended installation inside an outdoor housing attached to the mast (ref. 4163).

Specifications
Technical specificat.
Frequency marginMhz0-3000
Insertion lossesdB0.1
Discharge voltageV90
Max. peak power (PEP)W (Вт)200
Max. discharge correntkA10
Nominal currentA10
ImpedanceOhm75
Operating temperatureºC-40 ... 80
