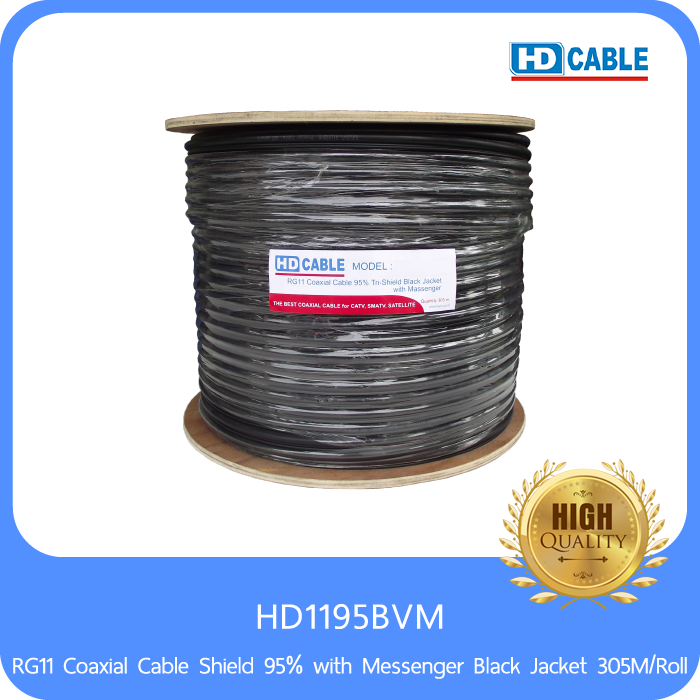

RG-11 Tri-Shield 95% Black Jacket 305 m

Attribute:

SKU : AC0111BBD0301 / MODEL : HD1195BVMT

Share

Categories : MATV & CATV Coaxial Cable

Share

PRODUCT DESCRIPTION:
Bonded foil, 95% Braid, PVC jacket 0.072" messenger

CENTER CONDUCTOR:
14 AWG copper-clad steel
Nominal Diameter: 0.064" (1.63 mm)

DIELECTRIC:
GAS Expanded Polyethylene
Nominal diameter over dielectric: 0.280" (7.11 mm)

SHIELD:
1ST Shield: Alumunum-polypropylene-aluminum laminated tape with overlap bonded to the dielectric
Nominal diameter over tape: 0.287" (7.29 mm)
2nd Shield: 34 AWG aluminum braid wire 95% coverage

JACKET:
PVC
Nominal diameter of messenger: 0.395" (10.03 mm)
Mominal jacket thickness: 0.042" (1.07 mm)

MESSENGER:
Nominal diameter of messenger: 0.072" (1.83 mm)
Minimum Breaking strength: 365 lbs. (166kg)

ELECTRICAL PROPERTIES:
Impedance: 75.0+/- 3.0 Ohms
Velocity of Propagation : 85.0% Nominal
